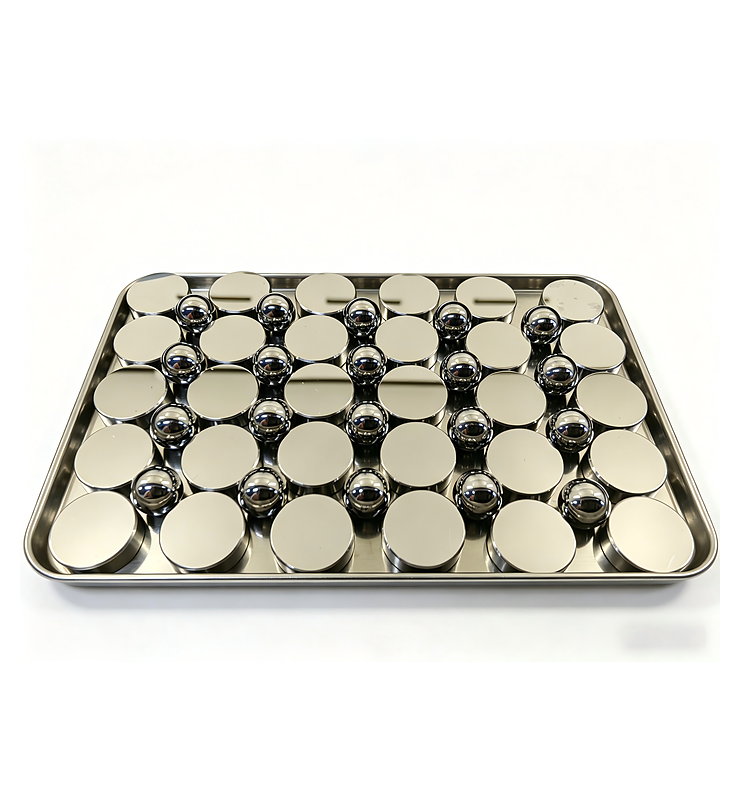

The ball and disc specimens for the high-frequency reciprocating rig used in diesel lubricity evaluation are manufactured by Beijing Gaoke. The materials and technical specifications of the test specimens comply with the standards specified in ISO 12156-1:2023, ASTM D6079-2024, and NB/SH/T 0765-2021 for test components. The test rig's ball and disc are designed as an upper ball and lower disc assembly; we recommend using one complete set per test to avoid inaccurate results caused by incomplete removal of lubricity additives.
24 Sales Service Hotline: 400 680 1900
E-mail:gaokesuo@gaokesuo.com
Product Name: HFRR Diesel Lubricity Tester Dedicated Consumables
II. Scope of Application: CMS-01 testing machine and other similar types of testing machines
3. Product Specifications, Storage, and Usage:
This product is vacuum-packed in boxes of 100 sets. After opening or handling, the test balls and discs should be stored in a glass desiccator containing color-changing silica gel, and the silica gel should be checked regularly for effectiveness. The temperature should be maintained between 15°C and 40°C.
2. Test balls and sheets must not be stored exposed in the air, especially after processing; they must be kept in a dry environment.
3. During the drying process before storage and use, the ball disc should be protected from contact with hard objects to prevent friction that could damage its surface finish and affect the accuracy of test data observation.
For other matters, please refer to the product manual.
CMS-01 Dedicated Test Ball and Disc for the High-Frequency Reciprocating Rig for Diesel Fuel Lubricity Evaluation
Main Technical Specifications
| Parameter | Test Ball | Test Disc |
|---|---|---|
| Material | ISO 683-17 100Cr6 Steel | ISO 683-17 100Cr6 Steel |
| Rockwell Hardness (HRC) | 58–66 | — |
| Vickers Hardness (HV30) | — | 190–210 |
| Surface Roughness | Ra < 0.05 | Ra < 0.02 |
| Diameter (mm) | 6 | 10 |
| Thickness (mm) | — | 3 |
